Ground Protection Mat Hire

  1. Ground Protection Mat Hire
  2. 2400 x 1200 x 13mm
Rhinotough ground protection mat showing moulded logo
Ground protection mat with 8 handles
Ground protection mat with 2 handles along each edge
Single and double connectors for ground protection mats
Ground protection mats laid out on a school sports field
Sports field that had ground proteciton mats laid down and then removed
Truck and trailer parked on ground protection mats
Temporary fencing compound with temporary ground protection road leading to it
School field that had ground protection mats laid on it
House moving company that used ground protection mats to move a classroom onto school grounds
Diamond tread pattern on a ground protection mat
Ground protection mat laying on a concrete slab
Rhinotough ground protection mat
Connectors for ground protection mats
Temporary ground protection mat access way on a school field
School field after ground protection mats used for playground construction
Ground protection mats leading onto a field
Temporary roadway onto a school sport field
Grass field that had ground protection mats laid on it
Mats laid out on a school grass field

Ground Protection Mat: 2400 x 1200 13mm


$12.60 + GST per Week Availability:Call Us

Ground protection mats are so easy to use and will save you a heap of money by avoiding reinstatement costs and getting trucks.

During winter trucks and diggers will churn up grass and soil and create a huge mud mess. Sure you can use plywood but it just doesn't last and it ends up being expensive replacing the ply sheets. Plywood also gets very slippery once wet and muddy creating traction issues for both vehicles and pedestrians.

Common applications of truck mats:

  • Temporary pedestrian access ways.
  • Temporary roadway for vehicles.
  • Surface protection when moving machinery or material over sensitive surfaces.
  • Lay down areas for equipment or material.
  • Temporary parking area.

Specifications


Below are specifications for our track mats:


Length:
2400mm

Width:
1200mm

Thickness:
13mm

Weight:
39kg
Material:
HDPE
Tread Pattern:
Diamond tread pattern on both sides
Handles:
8 handles per mat (2 on each side)
Carrying capacity:
80T on a solid sub-surface

Hire Pricing


Below are the hireage costs for our mud mats:


Hireage:
First week (minimum charge): $12.60 per week
After the first 7 days: $1.80 per day

Flat deck delivery:
From $90 each way

Hiab delivery:
Generally most orders are delivered and collected via flat deck truck however Hiab delivery can be organised at roughly $220 per hour

Cleaning:
If mats require cleaning on return: $5 per mat

All pricing is plus GST.

Delivery and collection from site:

  • Flat deck delivery & collection - Depending on the quantity of mats ordered we will either require help on site to unload and reload or we can supply additional staff if needed.
  • Hiab delivery - Hiab delivery is charged on an hourly basis from when the truck leaves their yard to when it arrives back there.
  • Collection from us - You're welcome to collect from our yard in Takanini.
  • Laying out mats (or collecting when laid out) - Additional labour costs are applicable for laying out mats or collecting mats that are laid out and not stacked where truck access is available.

Purchase Pricing


Below are the purchase costs for our ground protection mats:


Cost:
$295 per mat (discount for 50+ mats and again for 100+ mats)

Flat deck delivery:
We often deliver free of charge however for small quantities a delivery fee is charged (generally $90)

Hiab delivery:
Generally most orders are delivered via flat deck truck however Hiab delivery can be organised at roughly $220 per hour + GST


All pricing is plus GST.

Delivery and collection from site:

  • Flat deck delivery & collection - Depending on the quantity of mats ordered we will either require help on site to unload and reload or we can supply additional staff if needed.
  • Hiab delivery - Hiab delivery is charged on an hourly basis from when the truck leaves their yard to when it arrives back there.
  • Collection from us - You're welcome to collect from our yard in Takanini.

Set Up Instructions


Easiest Method:


Unless the vehicles are traveling up or down a slope the mats generally stay where they are on the flat. Overlap the ends roughly 50 to 80mm to minimise the amount of mud that comes up between the mats. If the mats are moving around follow the instructions below to connect them together.

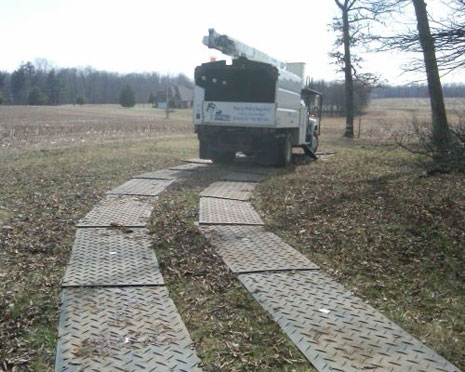

Temporary access road with a truck driving on ground protection mats


Below are some instructions for connecting together the ground protection mats:

  • Step 1: Lay a mat down on the ground where your temporary roadway will start.

  • Step 2: Insert one side of the connector into the holes located in the corners of the mat. If you're setting up two separate tracks (ie. a mat width each with a gap in the middle) use the single connectors, if you're setting up a double width track (ie. two mats connectors together like the photo below) use the double connectors along the middle join.

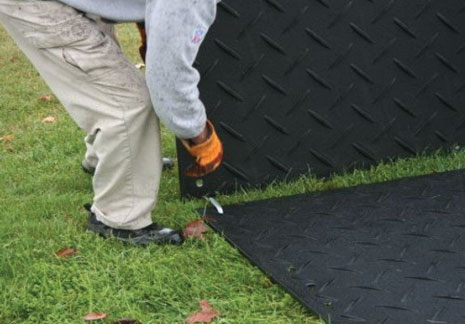

    • Connector being fitted to a ground protection mat

  • Step 3: Place the second mats short edge up against the short edge of the mat already on the ground. Lift the second mat up to around a 45 to 60 degree angle and either support it with a stake or have someone hold it. Slip the connectors other side into the same holes on the second mat.

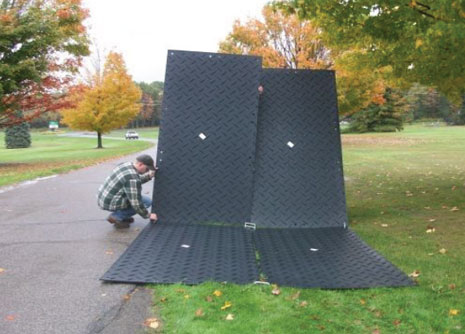

    • Ground protection mats being connected together

  • Step 4: Lay the mat down on the ground. Repeat for however many mats you need to fit together to form your temporary roadway.

Videos


Below are some videos of our rumble grids:
